HydraFlex (HC) Series

Our HC (High Capacity) Dry Polymer System are capable of handling consumption rates of 1500 kg’s /3300 lbs./day.   We custom design larger systems by implementing rapid fill lines, tank, and mixer enhancements for higher-than-normal use applications.

We feature 3 basic designs:

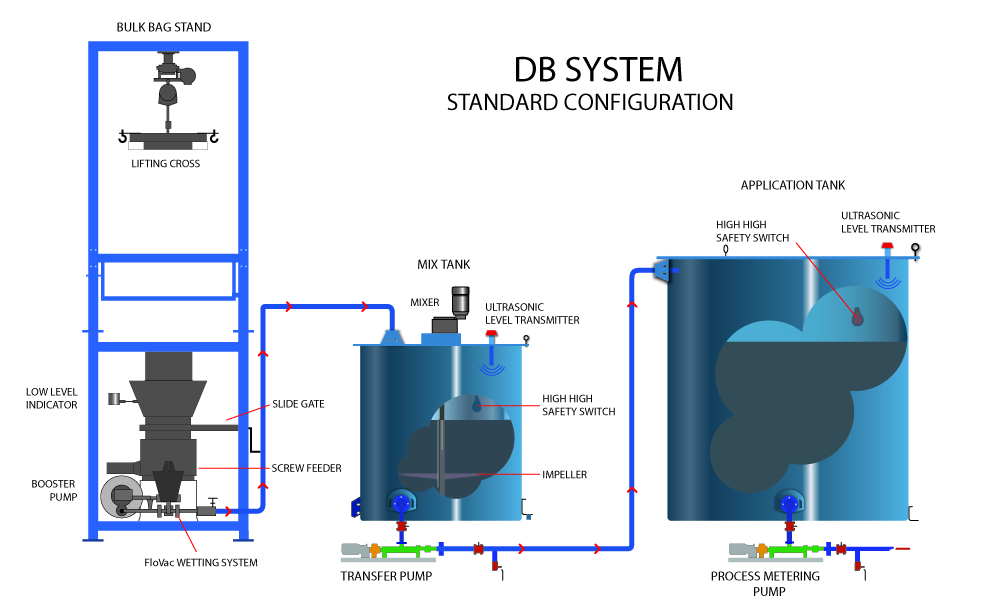

Traditional 2 Tank System

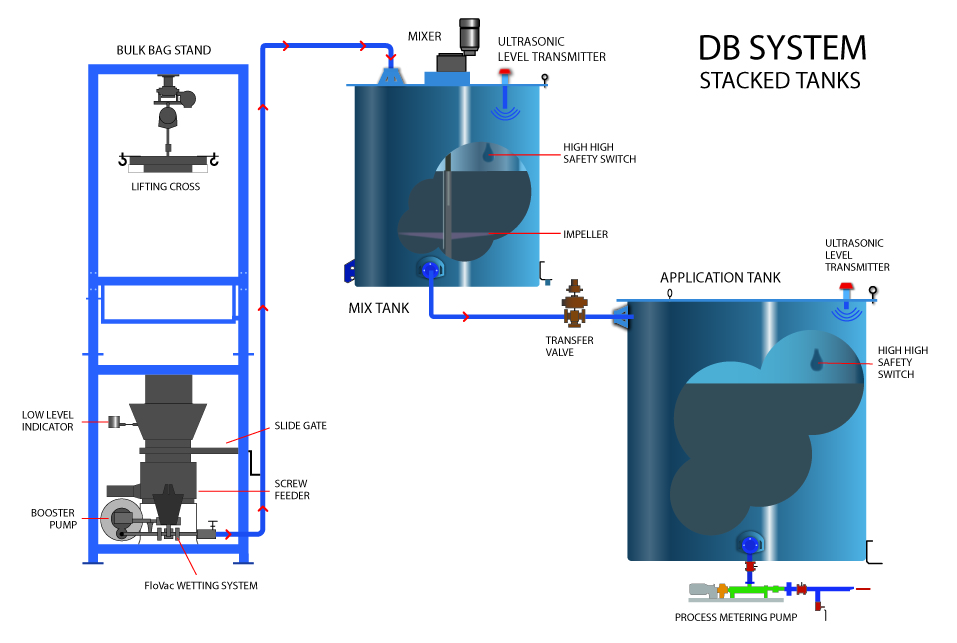

Stacked Tanks w/ Dump Valve

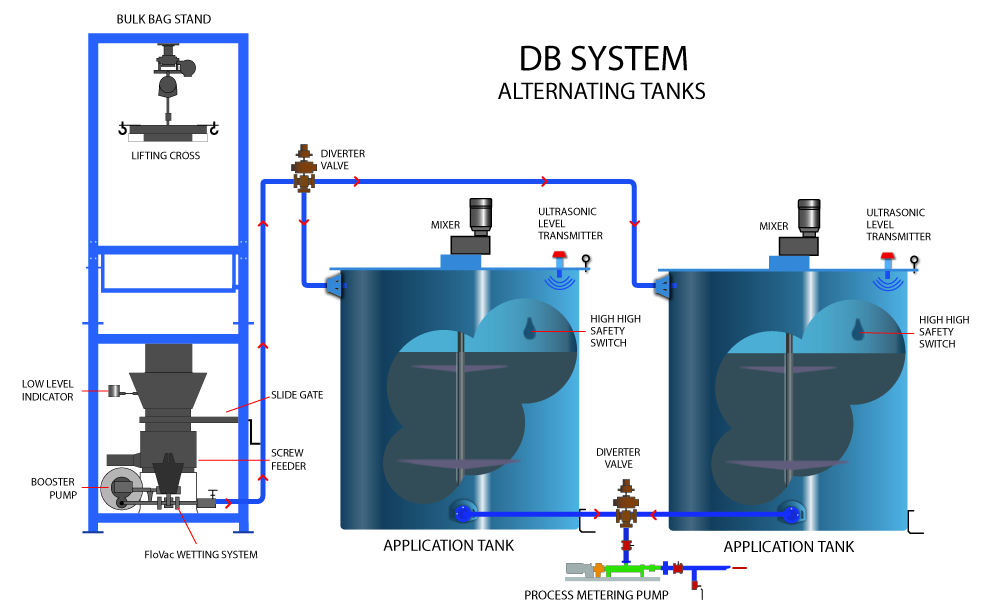

Alternating Tank (Flip-Flop)

General Information

General Details

  • Inlet Water Flow- 600 LPM – 150 GPM
  • Inlet Water Pressure (required)- 80 PSI Minimum
  • Power Requirement- 575 – 460 VAC
  • Polymer Consumption- 1050 Kg/day @ .5% Concentration
  • All required check valves 316 SS
  • Removable hopper/feeder safety screen
  • TripKO Volumetric Feeder w/conditioner auger

Download

Download a fully detailed brochure with more information.

Features

  • Piping 316 SS B31.3 flanged construction.
  • SS hopper assembly w/level sensor
  • Double latch hermetically sealed access door
  • VFD Feeder speed controller and auxiliary timer
  • SS HydraFlex  wetting system w/overflow protection
  • Magnetic flow meter – source water, fail safe.
  • Electrical certification UL/CSA

Aditional Information

Operational Sequence – Mix Tank
  1. Water inlet valve opens.
  2. (Optional) booster pump starts.
  3. Flow rate confirmed.
  4. Tank water level rises, lower mixer propeller immersed.
  5. Mixer motor starts.
  6. Volumetric feeder starts & feeds polymer.
  7. At 80% tank level the feeder stops
  8. Water continues completes the fill cycle.
  9. The mixer continues until sufficient polymer hydration is achieved.
Operational Sequence – Application/Storage Tank
  1. Ratio to Mix tank best at 2:1 or more.
  2. Tank level drops to predetermined volume.
  3. Requires Sufficient capacity receive the entire contents of the mix tank

HC-200 Utilities

Inlet Water Flow600 LPM – 150 GPM
Inlet Water Pressure (required)80 PSI Minimum
Power Requirement575 – 460 VAC
Polymer Consumption1050 Kg/day @ .5% Concentration
w / Alternating Tank Configuration * AT1500 kg/d Yield
PLC StandardAllen Bradley MicroLogix
HMI StandardAllen Bradley PanelView Plus

HC-100 Utilities

Inlet Water Flow375 LPM – 100 GPM
Inlet Water Pressure (required)80 PSI Minimum
Power Requirement460/575 VAC
Polymer Consumption700 Kg/day @ .5% Concentration
w / Alternating Tank Configuration * AT1200 kg/d Yield
PLC StandardAllen Bradley MicroLogix
HMI StandardAllen Bradley PanelView Plus

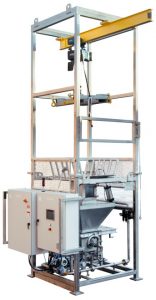

Consistent and accurate feeding is critical for industrial and municipal large volume polymer applications. Our designs include a single feed and conditioning screw in all our HC Series Systems volumetric feeders. Hoppers also include a safety screen, a vibrator pad (vibrator optional) hermetically sealed knife gate isolation valve, dust collection hookups and an access hatch with viewing window with a heavy duty locking mechanism.

HC-200

Tank Sizing w/Standard Transfer Pump

Polymer Usage/DaySuggested Mix Tank Size (Working Volume)Std. Transfer Rate
KG’sLitersL/Min
3255m3600
50010m3600
75015m3600
90020m3600
100025m3600
105030m3600
1250*25m3/AT
1500*30m3/AT

* Recommended 90-minute mix time.

HC-100

Tank Sizing w/Standard Transfer Pump

Polymer Usage/DaySuggested Mix Tank Size (Working Volume)Std. Transfer Rate
KG’sLitersL/Min
3005m3375
50010m3375
60015m3375
70020m3375
75025m3375
1125*25m3/AT
1200*30m3/AT
