HydraFlex(LC) Series

LCPB Series

Systems are designed for bulk bag applications. Typically, they are installed in remote locations that have limited staffing resources. We offer a variety of tank sizes, materials of construction, and hopper designs.

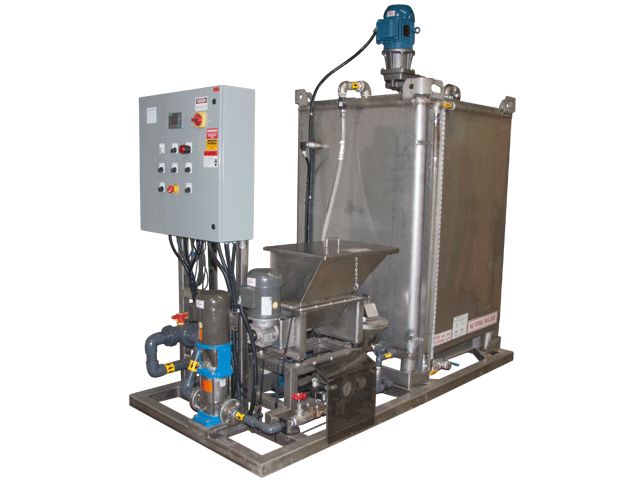

LCP Series

Systems are designed for use with small 25 kg – 50 lbs. Paper bag applications, we offer a variety of hopper sizes and dust free bag dump options.

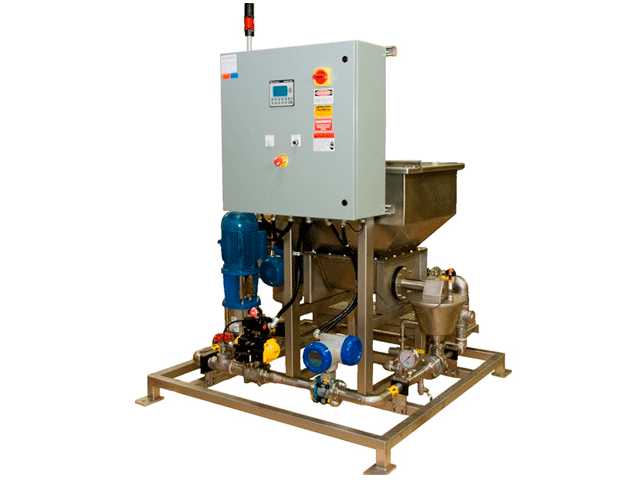

LCS Series

Systems are used as replacement units where tanks and feed systems are existing.

LCS system are mounted on a single small footprint frame that includes an automated control panel and tank level sensor.

Details

They Include:
  • Powder Handling & Wetting devices
  • Transfer Pump(s)
  • Mix & age tank
  • Tank level sensors
  • Low shear polymer mixer
  • Mounted on a single frame.
Tank options:
  • 304/316 SS
  • Polyethylene
  • FRP

Utilities

Inlet Water Flow115 L/m – 30 GPM
Inlet Water Pressure (required)80 psi minimum
Power Requirement220/460/575 VAC
Polymer Capacity110 kg/day @ .5% concentration
PLC StandardAllen Bradley MicroLogix
HMI StandardAllen Bradley PanelView Plus

Tank Sizing w/Standard Transfer Pump

Polymer Usage/DaySuggested Mix Tank Size (Working Volume)Transfer Rate
KG’sLitersL/Min
651000100
901500100
1102000100

Features

Standard Components:
  • Structural 304 SS construction
  • Piping 316 SS welded & flanged construction
  • SS hopper assembly w/level sensor
  • Double latch access door
  • Removable safety screen
  • TripKO Volumetric Feeder w/conditioner
  • Feeder w/VFD or DC speed control
  • SS HydraFlex Wetting System w/overflow protection
  • Magnetic flow meter
  • All required check valves 316 SS
  • Electrical certification UL/CSA
Options
  • Piping 316 SS B31.3 construction
  • Client specified instruments & components
  • Multi-stage booster pump
  • Knife/Slide gate hopper isolation valve
  • Double latch access door w/viewing glass
  • Optional tank construction & configuration
  • Electrical certification /CE
