Typhoon Hydramix

Typhoon Hydramix

  • Used to blend a variety of dry materials
  • Especially suited for extreme fine or difficult powders
  • Used to mix, blend, hydrate or disperse.

General Details

The pressurized motive fluid (water) is supplied to the “Typhoon” housing by means of a tangential inlet and forced through a complex matrix in the “Typhoon” insert. The flow of the motive fluid through the matrix creates a negative pressure zone, increasing the surface area and mixing capability of the process materials. This devise is mounted on top of the process/mix tank where the dilution water and powders interface and are driven into the vessel, thus significantly reducing the potential of any fine particles from escaping to the environment, providing a safe working area.

Aditional Information

Operational Sequence Mix Tank
  1. Operational Sequence Application/Storage Tank
  2. Water inlet valve opens.
  3. (Optional) booster pump starts.
  4. Flow rate confirmed.
  5. Tank water level rises, lower mixer propeller immersed.
  6. Mixer motor starts.
  7. Volumetric feeder starts & feeds polymer.
  8. At 80% tank level the feeder stops
  9. Water continues completes the fill cycle.
  10. The mixer continues until sufficient polymer hydration is achieved.
Operational Sequence Application/Storage Tank
  1. Ratio to Mix tank best at 2:1 or more.
  2. Tank level drops to predetermined volume.
  3. Requires Sufficient capacity receive the entire contents of the mix tank

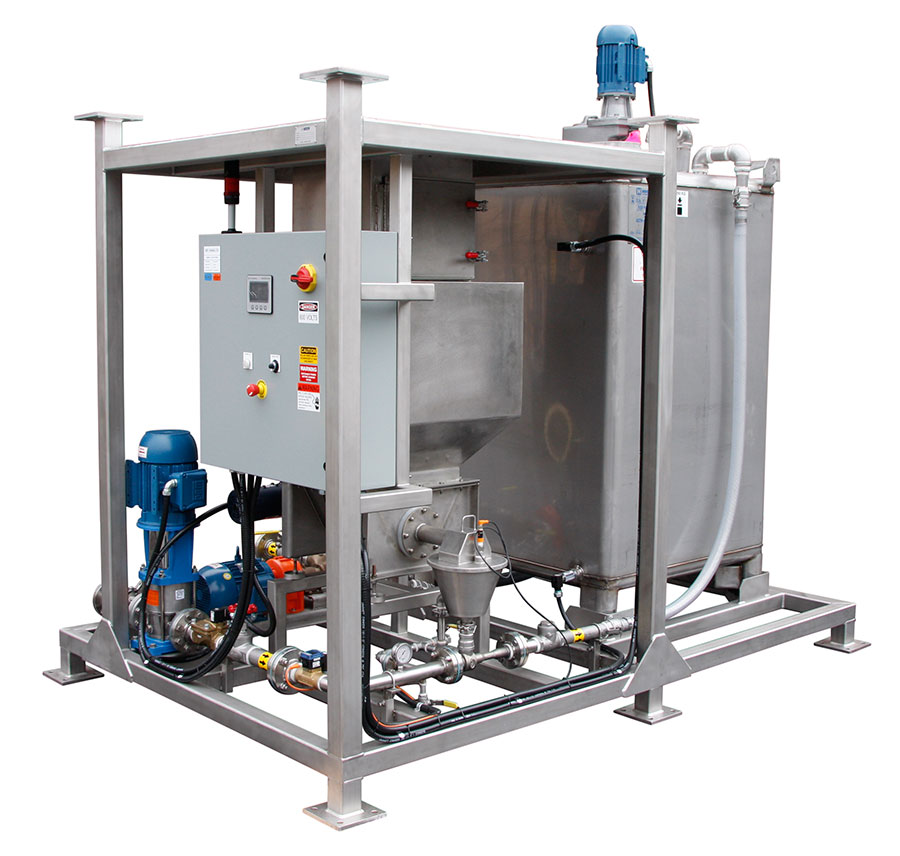

Standard Components:

  • Piping 316 SS B31.3 welded & flanged construction.
  • SS hopper assembly w/level sensor
  • Double latch hermetically sealed access door
  • Removable hopper/feeder safety screen
  • TripKO Volumetric Feeder w/conditioner auger
  • VFD Feeder speed controller and auxiliary timer
  • Magnetic flow meter – source water, fail safe.
  • All required check valves 316 SS
  • Electrical certification UL/CSA

Options

  • Custom engineering and design
  • Electric hoist & trolley
  • Supply hopper conditioning auger
  • Dust collector
  • Client specified instruments & components.
  • Loss of weight feed systems 
  • Optional tank construction, material selection & configuration 
  • Electrical certification / CE 
  • Double latch access door w/viewing window. 
  • Knife gate hopper isolation valve 
  • Multi-stage booster pump 
  • Rapid Fill System
