Wangen- Self Priming Pumps

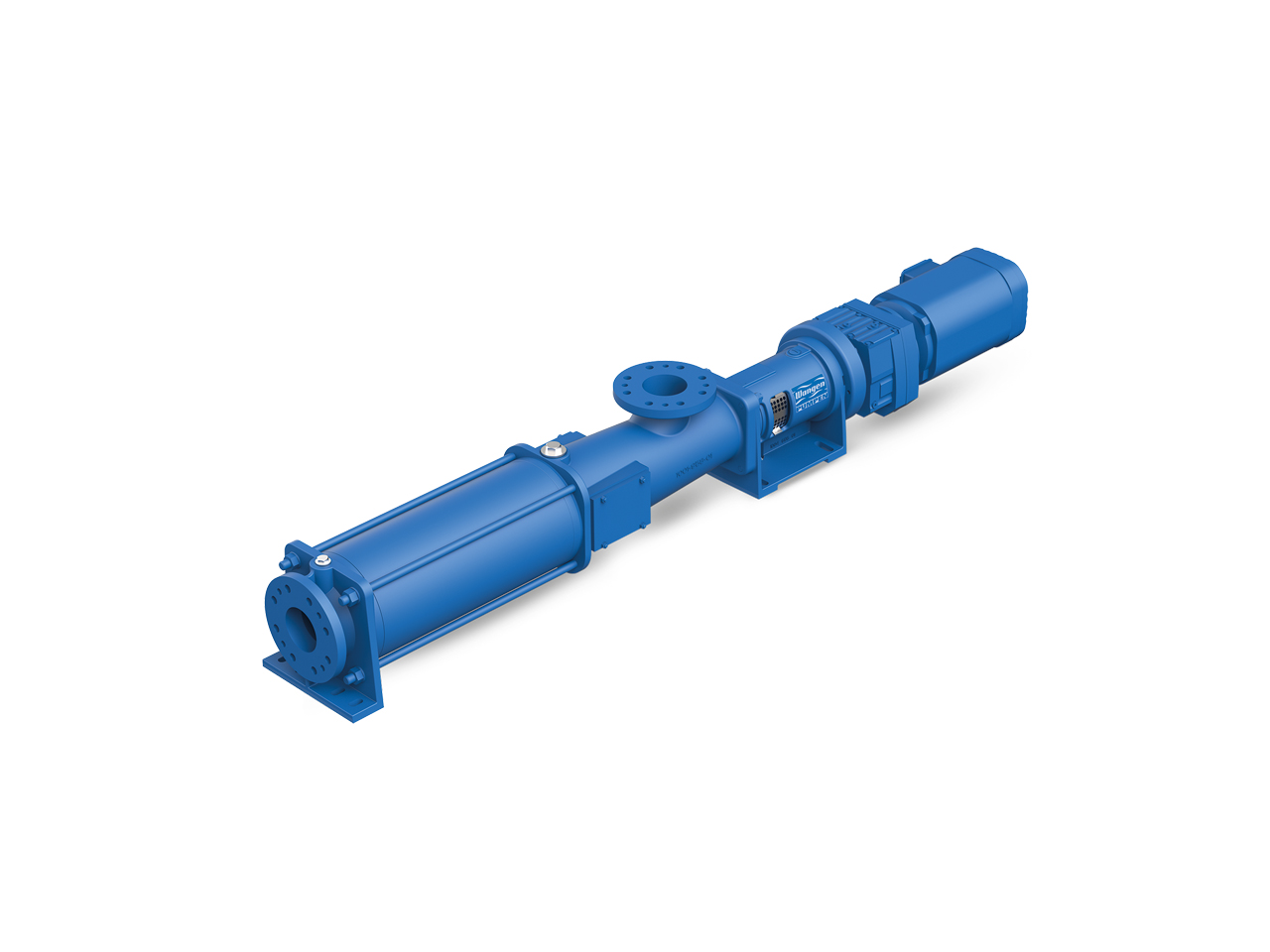

Type KL-S

Wangen Type KL-S

Benefits

  • Large viscosity range
  • Good pumping performance even against high pressure
  • High operational reliability
  • Consistent diameters at joint connections for constant flow rates
  • Rigorous modular principle for high flexibility, low stocking of spare parts, short downtimes for maintenance and repairs
  • Optimum service life
  • Excellent pumping performance with abrasive and fibrous materials
  • High suction lift (self-priming)

Performance

  • Flowrate 0-560 mᶟ/hr
  • Pressure to 48 bar
  • Viscosity to 200,000 cps

Technical Details

  • Mature, robust universal joints with extended service life; non-clogging; with or without pre-feeding screw
  • Fully developed, robust universal joint with or without pre-feeding screw
  • Flexible drive selection (helical geared motors, hydraulic motors)
  • Suction housing with large inspection and cleaning openings
  • Large variety of flange connections
  • Available seal types: Stuffing box, mechanical seal, LWD mechanical face seal, lip seals, with and without rinsing or buffer fluid
  • Robust bearing pedestal with close-coupled drive and self-centering of the drive

Technical Details

  • Large variety of flange connections
  • Stator with S-cone inlet for optimum filling of the pumping chamber
  • Various rotor/stator geometries (S, L and H geometry)
  • Mature, robust universal joints with extended service life; non-clogging; with or without pre-feeding screw
  • Various mechanical seals as standard versions
  • Sturdy block housing for various gear flange fittings
  • Flexible drive selection
  • Hollow rotors for smooth running
  • Driven by PTO or drive shaft with feather key
  • Double bearing arrangement with tapered roller bearings
  • Robust bearing pedestal for high force transduction

Performance

  • Flow Rate – 5 mᶟ/h
  • Pressure to 16 bar

Suitable for

  • Municipal and Industrial Waste Water
  • Flocculants
  • Sewage Sludge
  • Mining
  • Paper & Pulp

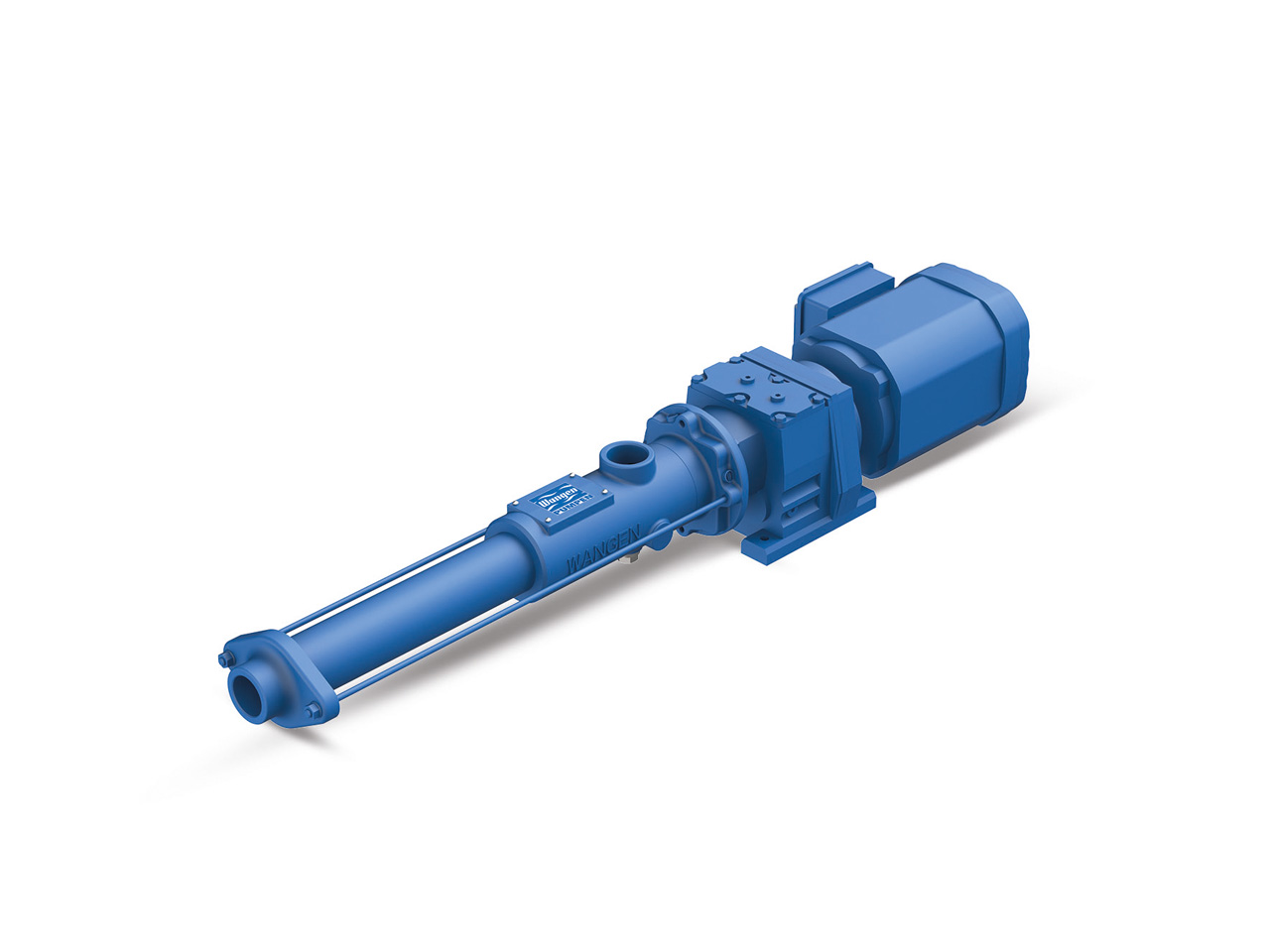

Type KB-S

Wangen Type KB-S GG

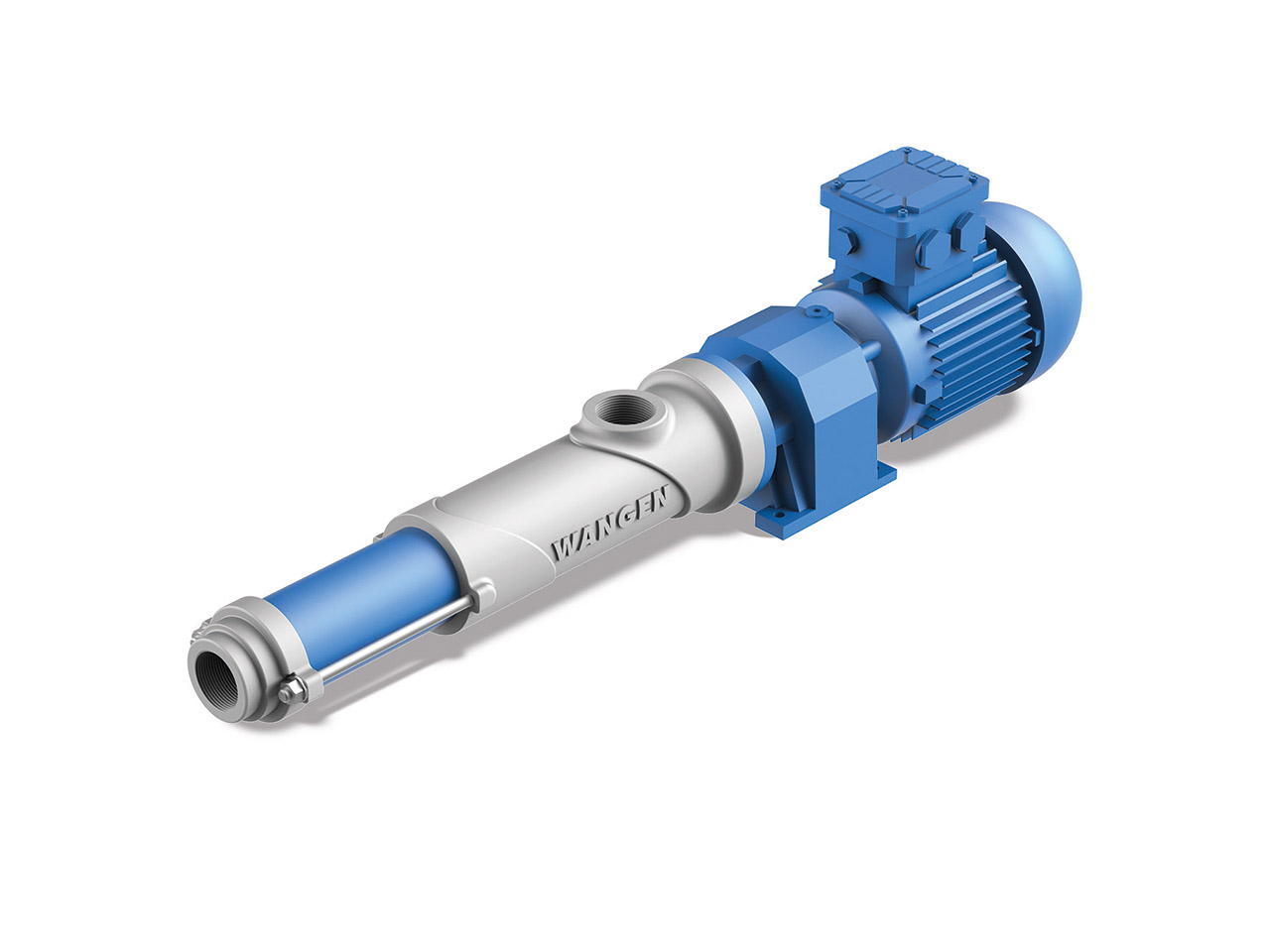

Type KB10S/KB22S

Type WANGEN KB10S / KB22S

Benefits

  • Housing available in SS, plastic, or cast iron
  • Flexible joint without oil filling (prevents contamination of the media)
  • Large dosing range
  • Dosing accuracy ± 1%

Performance

  • Flowrate 0.5 – 4 l/h – 0.002-17.6 gpm
  • Pressure Rating 16 bar/232 psi



The WANGEN KB10S / KB22S has been developed especially for polymer and chemical dosing with high repeatable accuracy.

Suitable For

  • Municipal and Industrial Waste Water
  • Flocculants
  • Sewage sludge
  • Mining
  • Paper & pulp

Suitable for

  • Bentonite
  • Flocculants
  • Milk of lime
  • Industrial waste water
  • Activated sludge
  • Flotation sludge
  • Mining, pulp & paper industry

Performance

  • Flowrate up to 56 mᶟ/h / 246 gpm
  • Pressure up to 6 bar / 87 psi



Benefits

  • The pump remains in the system when changing rotor/stator, thus considerably reducing the amount of installation work
  • Changing the complete drive section of the WANGEN Xpress can be carried out using 4 standard tools, quickly and easily
  • Quick change of shaft seal
  • Excellent price/performance ratio
  • Low Life Cycle Costs
  • Low servicing costs

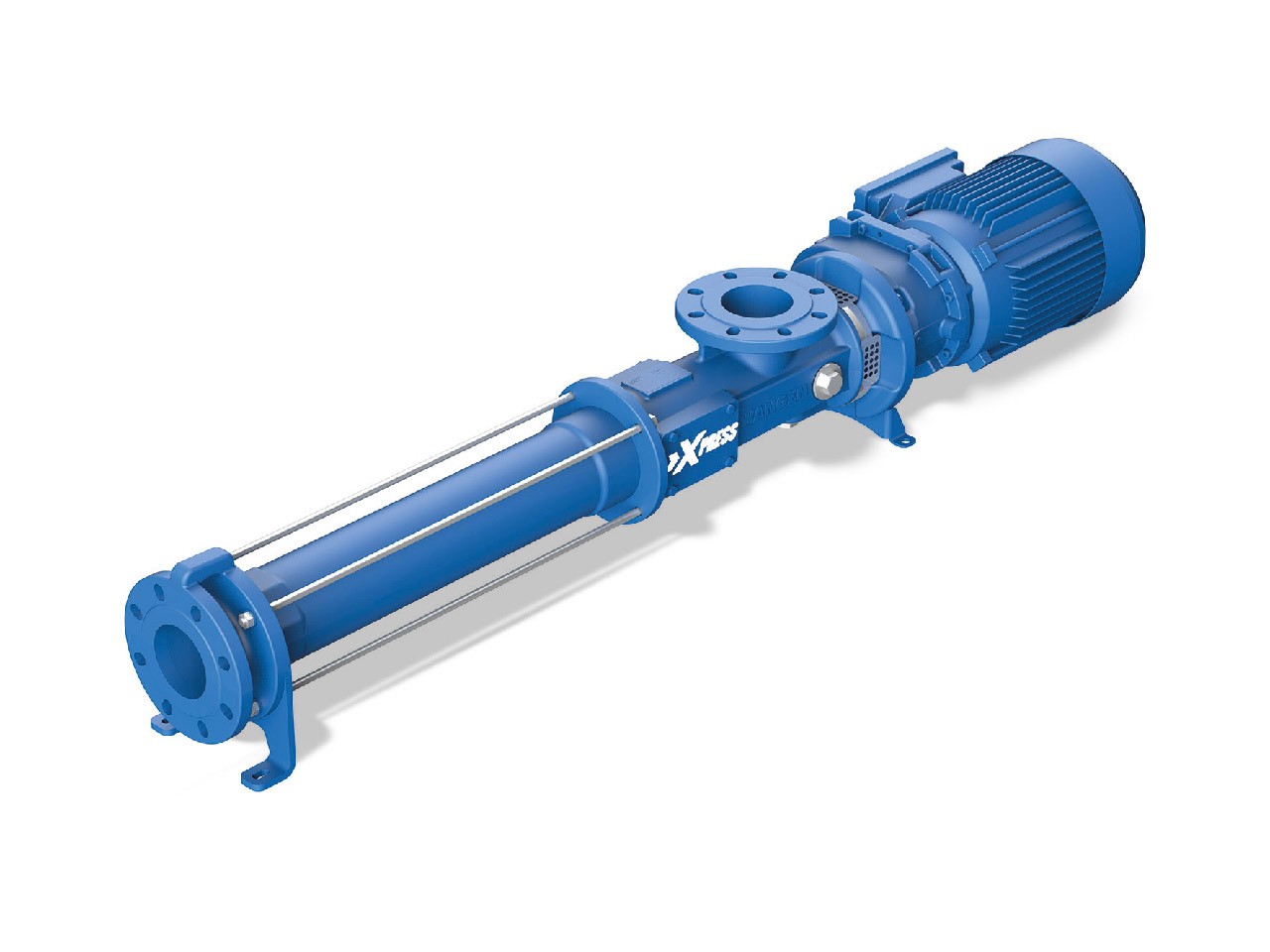

Type WANGEN Xpress

Type WANGEN Xpress

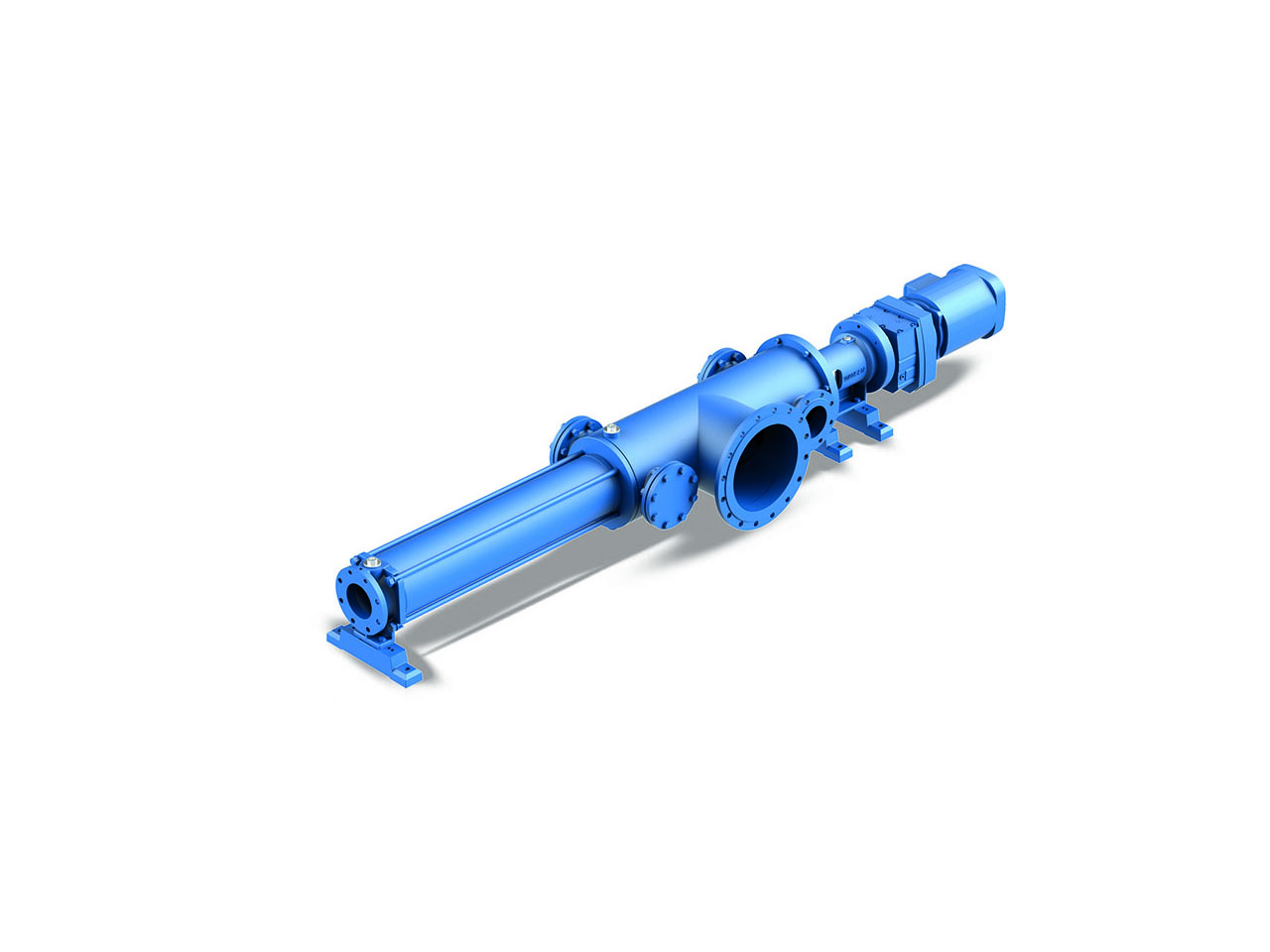

Wangen BIO-FEED

Type WANGEN BIO-FEED

Benefits

  • X-LIFT quick change system
  • Large-scale mixing chamber
  • Specially-developed joint with milling screw
  • Liquid addition and high-performance central pump
  • Unproblematic liquid feeding with wet and watery solids, without additional liquid
  • Liquid feeding pump for connection to existing screw technology
  • Low Life Cycle Costs
  • The pump remains in the system when changing rotor/stator, thus considerably reducing the amount of installation work
  • Fast rotor/stator changes
  • Maintenance-friendly

Performance

  • Flowrate up to 50 mᶟ/h
  • Pressure up to 6 bar 87 psi



The WANGEN BIO-FEED pump is designed especially for applications to combine the blending of solids and liquids.



Technical Details

  • Modern sealing system (LWD mechanical face seal)
  • Fully developed, robust universal joint with pre-feeding screw
  • Flexible drive selection
  • Inspection port
  • Stator with S-cone inlet for optimum filling of the pumping chamber
  • Various geometries and pump sizes

Technical Details

  • Driven by PTO shaft
  • Stator with S-cone inlet for optimum filling of the pumping chamber
  • Slide valve in suction housing pivotal for suction and delivery
  • Conical slide valve housing with adjustable tap cock
  • Hollow rotors for smooth running
  • Double, maintenance-free bearing
  • Shaft seal (mechanical face seal with oil quench)

Performance

  • Flowrate 60 – 90 mᶟ/h btw 120 – 160 mᶟ/h
  • Pressure at 6/12 bar or 6 bar

Benefits

  • Low Life Cycle Costs
  • High operational reliability
  • High pressure performance
  • Liquid addition and high-performance central pump
  • Unproblematic liquid feeding with wet and watery solids, without additional liquid
  • Liquid feeding pump for connection to existing screw technology
  • Low Life Cycle Costs
  • The pump remains in the system when changing rotor/stator, thus considerably reducing the amount of installation work
  • Fast rotor/stator changes
  • Maintenance-friendly

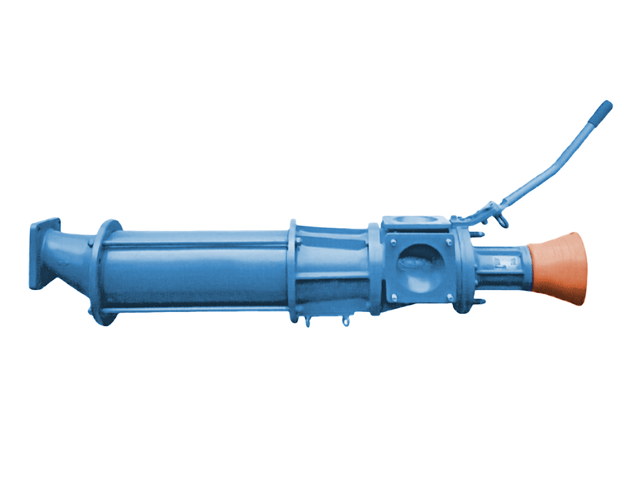

Type A PTO

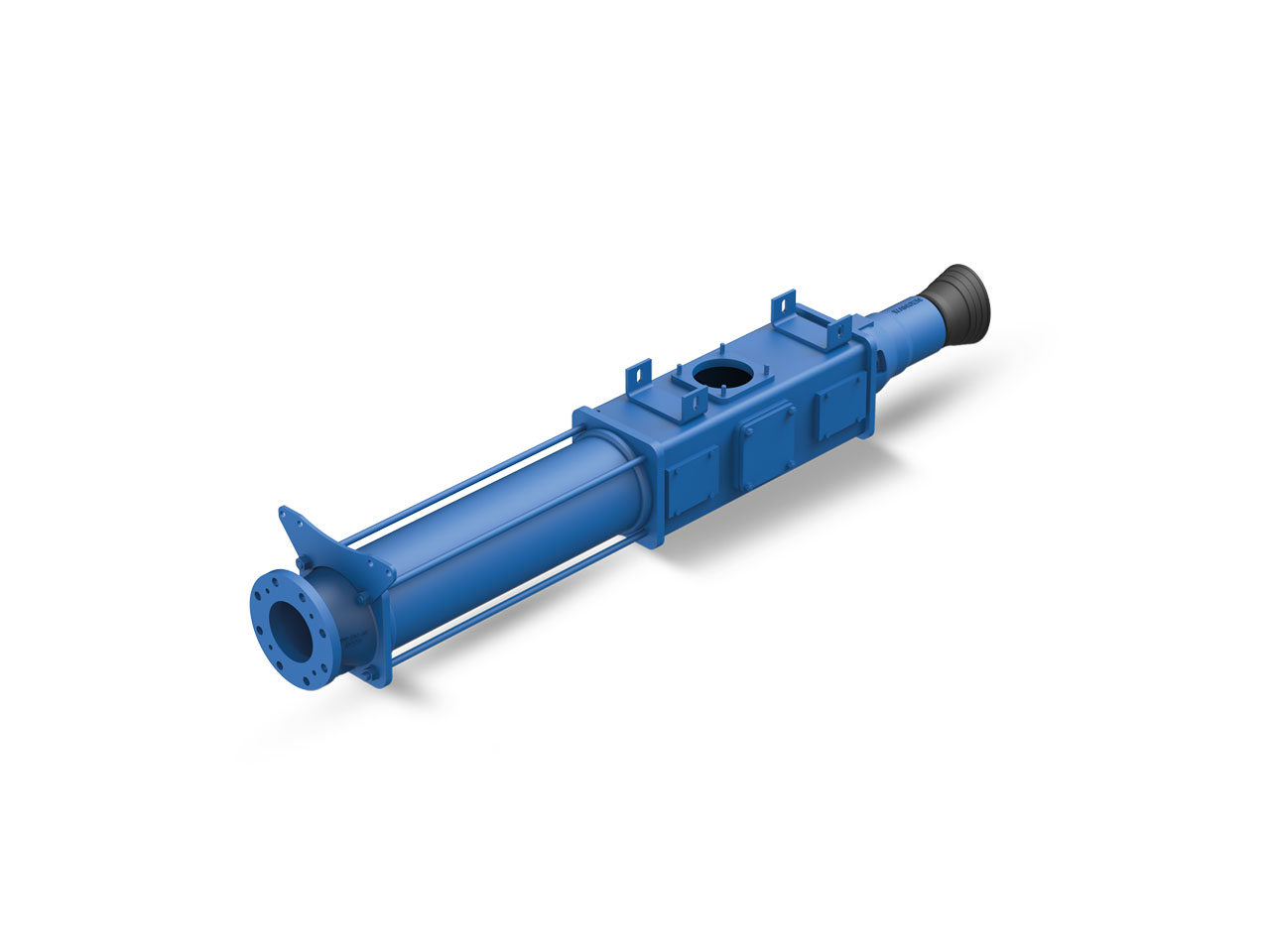

Type GL-F

Wangen Type GL-F

Benefits

  • No tangling of fibers around the joint or joint connections
  • Optional stone catcher
  • Pump delivery over long distances and elevation
  • Low Life Cycle Costs
  • High operational reliability
  • High priming capacity
  • Rigorous modular principle for high flexibility, low stocking of spare parts, short downtimes for maintenance and repairs
  • Low servicing costs
  • Low-pulsation, continuous conveyance independent of pressure and viscosity
  • Smooth running; hollow rotor design

Performance

  • Flowrate up to 7500 l/min
  • Pressure up to 8 bar



The WANGEN processing cavity pump of type GL-F is compactly built. It can be used to achieve high conveyance volumes and pressures.

  •

Technical Details

  • Stator with S-cone inlet for optimum filling of the pumping chamber
  • Various geometries and pump sizes
  • Shaft seal (mechanical face seal with oil quench)
  • Reinforced cardan joint
  • Suction housing with large inspection and cleaning openings
  • Maintenance-free mechanical seal independent of the sense of rotation
  • Hollow rotors for smooth running
  • Driven by PTO or drive shaft with feather key
  • Double bearing arrangement with tapered roller bearings
  • Robust bearing pedestal for high force transduction

Technical Details

  • Service-proven sealing systems
  • Hollow rotors for smooth running
  • Large variety of flange connections
  • Fully developed, robust universal joint
  • Suction housing with large inspection and cleaning openings
  • Various geometries and pump sizes
  • Stator with S-cone inlet for optimum filling of the pumping chamber
  • Driven by PTO or drive shaft with feather key

Performance

  • Flowrate 25 – 120 mᶟ/h
  • Pressure up to 6/12/18 bar

Benefits

  • Low Life Cycle Costs
  • High operational reliability
  • High priming capacity
  • Long service life
  • Good pumping performance even against high pressure
  • Rigorous modular principle for high flexibility, low stocking of spare parts, short downtimes for maintenance and repairs
  • Easy fitting to slurry tankers or trolleys
  • Smooth running; hollow rotor design

Type GL-S
