Wangen- Hygienic Twin Pump Line

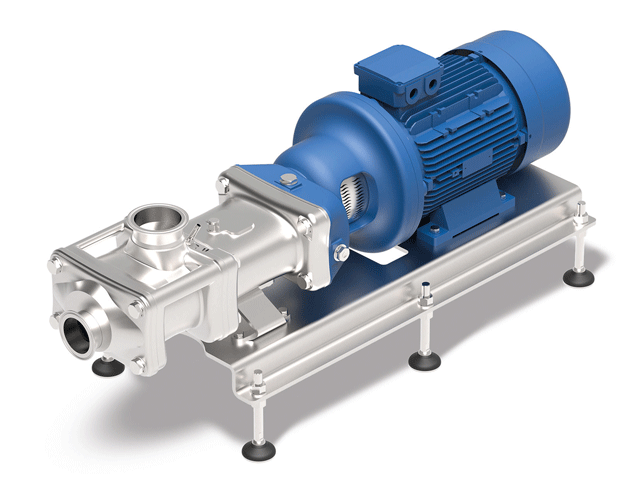

WANGEN Twin NG

Technical Details

  • Service-proven sealing systems
  • Flexible drive selection
  • Ground, electropolished surfaces
  • Wide variety of flange connections
  • Various mechanical seals as standard versions
  • CIP (Cleaning in Place)
  • Easy cleaning thanks to construction with little dead space
  • Rpm (rotations per minute) range from 100 to 4.000 min-1
  • Lip seal, single-action mechanical seals or double-action mechanical seals
  • Surfaces of the parts in contact with the product: Ra < 0,8 μm
  • Materials in contact with the product: stainless steel 1.4404
  • Priming capacity with NPSHR < 2 m
  • Viscosity range from 0,5 to 1.000.000 cps

Performance

  • Flowrate up to 200 mᶟ/h
  • Pressure up to 30 bar
  • Temperature Max. 130ᵒ C
  • Viscosity up to 1,000.000 cps

Benefits

  • Excellent price/performance ratio
  • Low Life Cycle Costs
  • High suction lift (self-priming)
  • High operational reliability
  • Compact design
  • Compact design avoids dead space and stagnant zones
  • Rigorous modular principle for high flexibility, low stocking of spare parts, short downtimes for maintenance and repairs
  • Almost pulsation-free conveyance
  • Optional heating or cooling jackets
  • Optionally with base plate or mobile
  • Gentle pumping

Suitable For

  • Tomato Sauce
  • Breweries
  • Hot Chocolate
  • Dairy sauces
  • Fruit juice
  • Gelatine
  • Ground Meat
  • Paint
  • Health care products
  • Glycerin/Oils

Performance

  • Flowrate up to 10 mᶟ/h
  • Pressure up to 25 bar
  • Temperature up to 94ᵒ C
  • Viscosity up to 3,000.000 cps

Details

Gently feeding high-viscosity media:

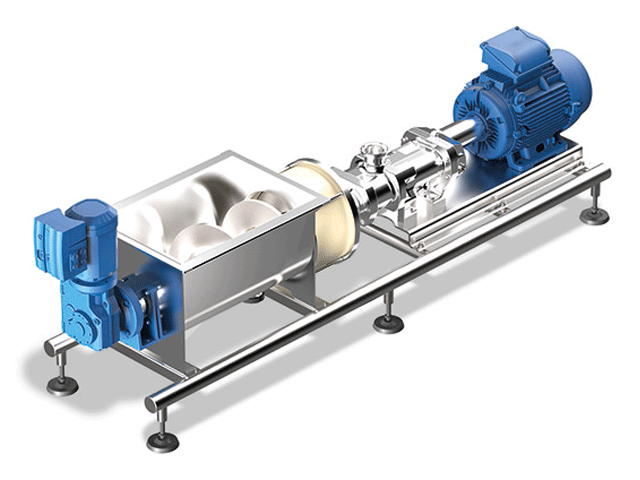

The WANGEN Vario Twin is an hygienic and patented add-on module to the WANGEN Twin screw pump, with hopper and screw conveyor.

WANGEN Vario Twin
