Wangen- Hygienic Pump Line

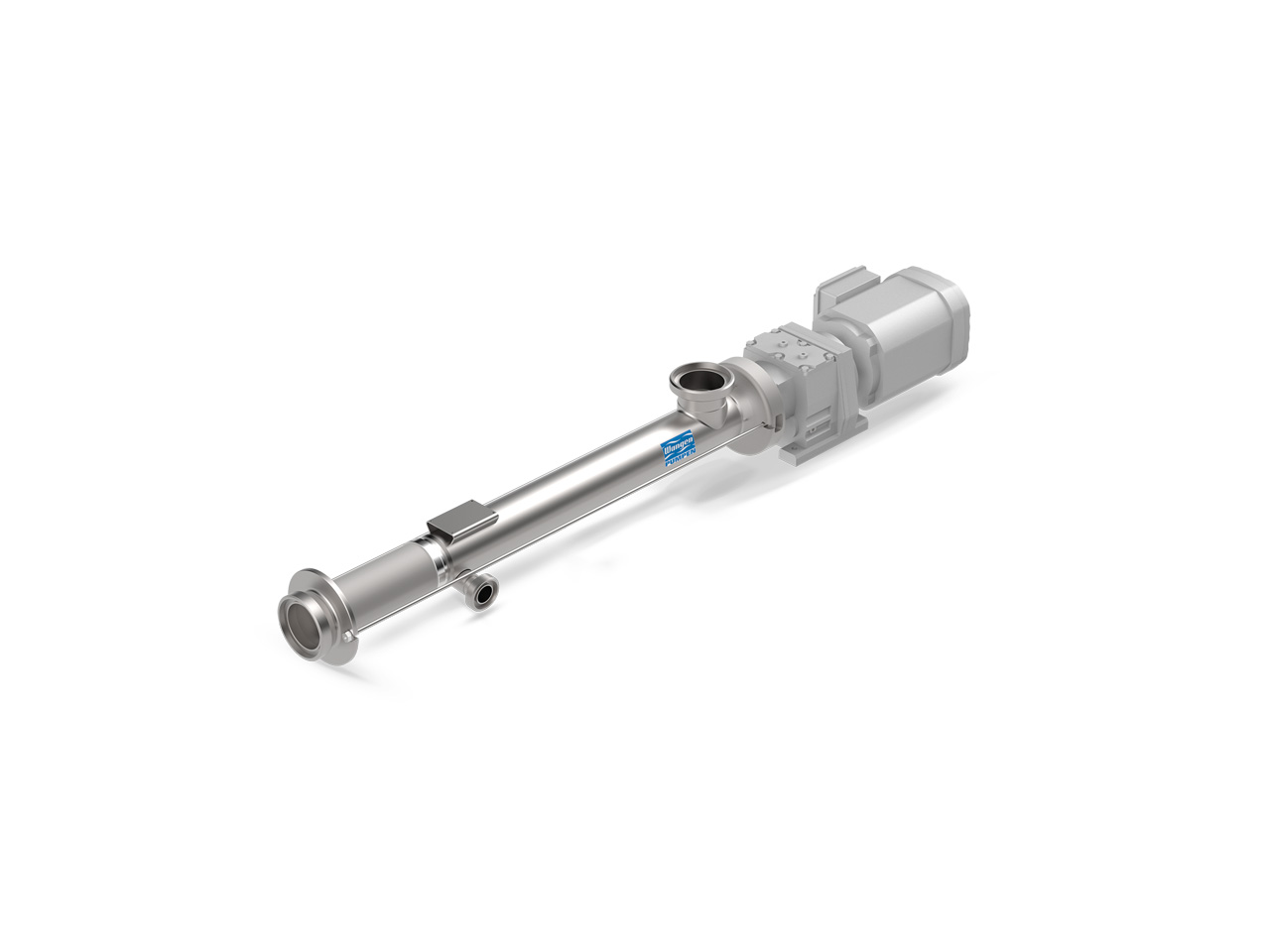

Type KB-SL Hygienic

Wangen Type KB-SL Hygienic

Technical Details

  • CIP (Cleaning in Place)
  • Encapsulated mechanical seal, single or double acting, rinsed by the product
  • Driven by helical geared motor
  • Easy cleaning thanks to construction with little dead space
  • Materials with FDA certificate on request
  • Discharge flange with self-emptying design
  • Surfaces of the parts in contact with the product: Ra < 0,8 μm
  • Flexible drive selection
  • Ground, electropolished surfaces
  • Maintenance-free mechanical seal independent of the sense of rotation

Performance

  • Flowrate 0 – 147 mᶟ/h
  • Pressure to 48 bar
  • Viscosity up to 200,000 cps

Benefits

  • Low Life Cycle Costs
  • Excellent price/performance ratio
  • Large viscosity range
  • High operational reliability
  • High dosing accuracy, also at low speed
  • High priming capacity
  • Long service life
  • Compact construction based on modular principle for high flexibility
  • Rigorous modular principle simplifies the handling of spare parts
  • Compact design avoids dead space and stagnant zones
  • EHEDG certified
  • High suction lift (self-priming)

Benefits

  • Maintenance-friendly
  • Optionally with one or two tangentially inclined cleaning connections
  • Can run dry
  • SIP and CIP cleaning
  • Robust bearing pedestal with close-coupled drive and self-centering of the drive shaft (optionally with bare shaft)
  • Low-pulsation, continuous conveyance independent of pressure and viscosity
  • Gentle pumping
  • Optional heating or cooling jackets
  • Low servicing costs
  • Rigorous modular principle for high flexibility, low stocking of spare parts, short downtimes for maintenance and repairs
  • Compact construction based on modular principle for high flexibility

Performance

  • Flowrate 0 – 259 mᶟ/h
  • Pressure up to 48 bar
  • Viscosity up to 200,000 cps

Technical Details

  • Flexible drive selection (helical geared motors, hydraulic motors)
  • Maintenance-free mechanical seal independent of the sense of rotation
  • Various rotor/stator geometries (S, L and H geometry)
  • Various geometries and pump sizes
  • Stator with S-cone inlet for optimum filling of the pumping chamber
  • Robust bearing pedestal with close-coupled drive and self-centering of the drive
  • Robust bearing pedestal for high force transduction
  • Surfaces of the parts in contact with the product: Ra < 0,8 μm
  • Materials with FDA certificate on request
  • Easy cleaning thanks to construction with little dead space

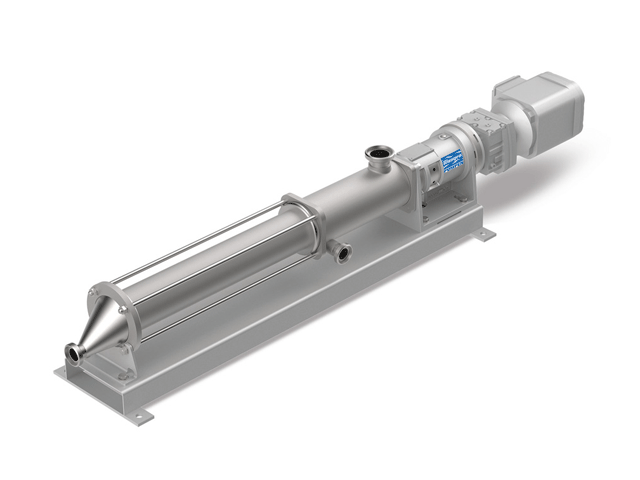

Type KL-SL Hygienic

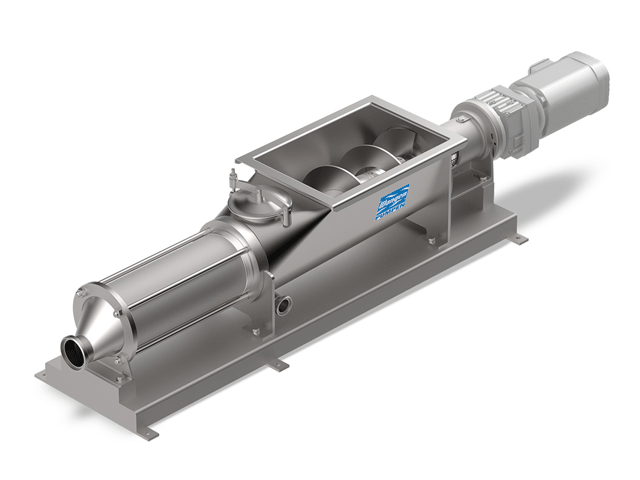

Type KL-RL Hygienic

Technical Details

  • Fully developed, robust universal joint with pre-feeding screw
  • Maintenance-free mechanical seal independent of the sense of rotation
  • Various rotor/stator geometries (S, L and H geometry)
  • Stator with S-cone inlet for optimum filling of the pumping chamber
  • Stator with S-cone inlet for optimum filling of the pumping chamber
  • Specially designed joints
  • Robust cardan joint
  • Robust bearing pedestal for high force transduction
  • Inspection port
  • Materials with FDA certificate on request

Suitable For

  • Food Processing
  • Juices
  • Meats
  • Dairy
  • Fruit
  • Breweries
  • Wineries
  • Oils
  • Sauces

Benefits

  • Easy to maintain thanks to large cleaning ports
  • Optionally with one or two tangentially inclined cleaning connections
  • Gentle pumping
  • Optional heating or cooling jackets
  • Low servicing costs
  • Modular design for high flexibility and short downtimes for maintenance and repairs
  • Rigorous modular principle simplifies the handling of spare parts
  • Compact design avoids dead space and stagnant zones
  • Long service life

Benefits

  • Maintenance-friendly
  • Rational and functional design
  • Gentle pumping
  • Optional heating or cooling jackets
  • Compact design
  • Long service life
  • Low Life Cycle Costs
  • Easy, space-saving assembly
  • Quick and easy manual cleaning
  • Excellent price/performance ratio
  •

Suitable For

  • Food Processing
  • Juices
  • Meats
  • Dairy
  • Fruit
  • Breweries
  • Wineries
  • Oils
  • Sauces

Technical Details

  • Inspection port
  • Service-proven sealing systems
  • Maintenance-free mechanical seal independent of the sense of rotation
  • Various rotor/stator geometries (S, L and H geometry)
  • Stator with S-cone inlet for optimum filling of the pumping chamber
  • Easy cleaning thanks to construction with little dead space
  • Encapsulated mechanical seal, single or double acting, rinsed by the product
  • Materials with FDA certificate on request
  • Special feed unit versions possible

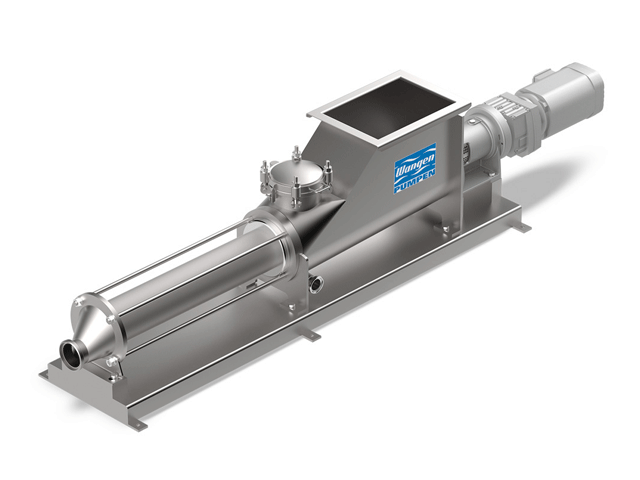

Type KL-RF Hygienic

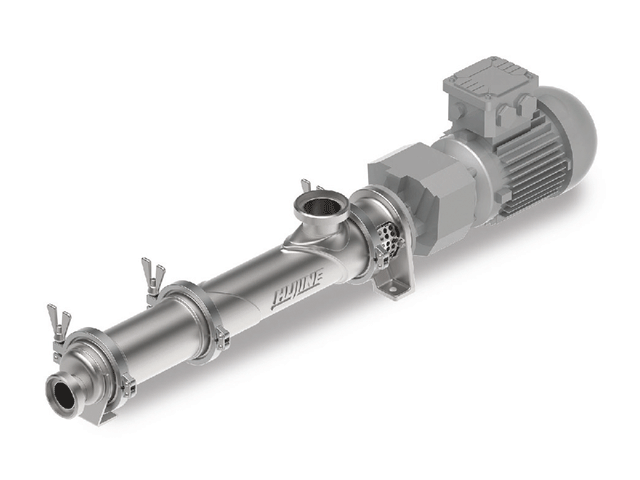

Type HYLINE

Performance

  • Flowrate up to 7 mᶟ/h
  • Pressure up to 20 bar
  • Temperature Range -30ᵒ C – 140ᵒ C
  • Viscosity up to 100,000 cps

Benefits

  • Excellent dosing accuracy
  • Low dead space design of the pump interior
  • Intelligent design

Suitable For

  • Food Processing
  • Juices
  • Meats
  • Dairy
  • Fruit
  • Breweries
  • Wineries
  • Oils
  • Sauces
