Wangen- Hopper Feed Pumps

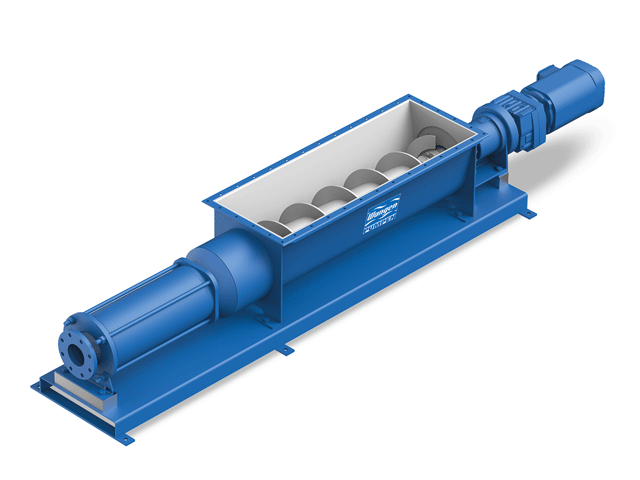

Type KL-R

Technical Details

  • Service-proven sealing systems
  • Robust bearing pedestal for high force transduction
  • Fully developed, robust universal joint with pre-feeding screw
  • Enlargement possible with add-on funnel
  • Flexible drive selection
  • Encapsulated mechanical seal, single or double acting, rinsed by the product
  • Robust bearing pedestal with close-coupled drive and self-centering of the drive
  • Stator with S-cone inlet for optimum filling of the pumping chamber

Performance

  • Flowrate 0.004 – 150 mᶟ/h
  • Pressure up to 48 bar

Benefits

  • Pump delivery over long distances and large differences in height
  • Low Life Cycle Costs
  • Large viscosity range
  • Good pumping performance even against high pressure
  • High operational reliability
  • Rigorous modular principle for high flexibility, low stocking of spare parts, short downtimes for maintenance and repairs
  • Low servicing costs
  • Optimum service life even with difficult media
  • Insensitive to foreign matter

Benefits

  • Maize Silage
  • Grass Silage
  • GPS
  • Solid Manure
  • Poultry Waste and Co-ferments, which are mixed with liquid in the pump

Performance

  • Flowrate 30, 40, 85, 150 mᶟ/h
  • Pressure 9, 12, bar
  • Dry Substance Content max. 45%

Technical Details

  • Fully developed, robust universal joint with pre-feeding screw
  • Service-proven sealing systems
  • Flexible drive selection
  • Reinforced cardan joint
  • Specially designed joints
  • Stator with S-cone inlet for optimum filling of the pumping chamber
  • Robust bearing pedestal for high force transduction
  • Suction housing with large inspection and cleaning openings
  • Driven by helical geared motor
  • Robust bearing pedestal with close-coupled drive and self-centering of the drive

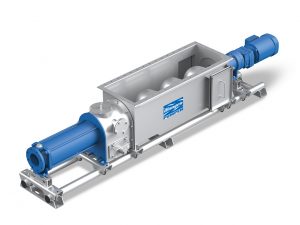

Type Wangen BIO-MIX

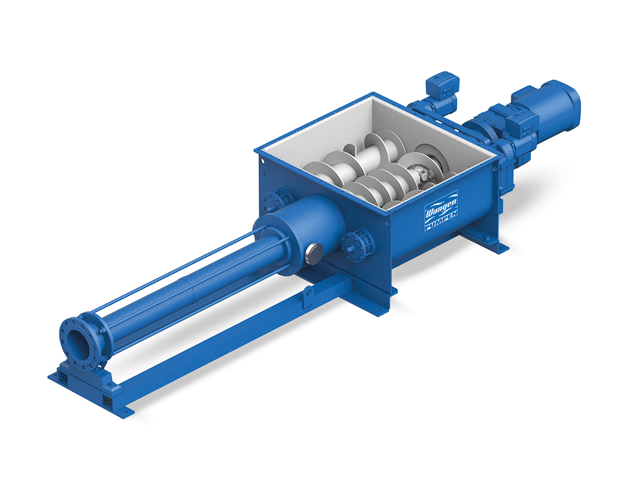

Type KL-R Triplex

Technical Details

  • Enlargement possible with add-on funnel
  • Continuous flow rates at high counter pressure up to 48 bar
  • Robust bearing pedestal with close-coupled drive and self-centering of the drive
  • Flexible drive selection
  • Fully developed, robust universal joint with pre-feeding screw
  • Wear-protected, robust universal joint with feeding screw
  • Collecting container optionally in three standard sizes (1m³/h – 10m³/h), special sizes on request

Performance

  • Flowrate 0 – 80 mᶟ/h
  • Pressure up to 48 bar
  • Dry Substance Content max. 45%

Benefits

  • Buffer volume up to 10 m³ possible
  • Modular design for high flexibility and short downtimes for maintenance and repairs
  • Constant metering because the discontinuous input is compensated by buffer volume in the collecting container
  • Unattended operation possible
  • Excellent metering, important for dryer and incinerator operation
  • Easy to maintain thanks to large cleaning ports
  • Low-pulsation, continuous conveyance independent of pressure and viscosity
  • High operational reliability
  • High pressure performance
  • High dosing accuracy, also at low speed
  • Little space required, with large collecting container

Benefits

  • Buffer volume up to 10 m³ possible
  • Low Life Cycle Costs
  • High dosing accuracy at low speed
  • High pressure performance
  • Optimum service life with difficult media
  • Low-pulsation, continuous conveyance independent of pressure and viscosity
  • Easy to maintain thanks to large cleaning ports
  • Excellent metering, important for dryer and incinerator operation
  • Unattended operation possible
  • Constant metering because the discontinuous input is compensated by buffer volume in the collecting container
  • Little space required, with large collecting container
  • Modular design for high flexibility and short downtimes for maintenance and repairs
  • Low construction with large container volume

Performance

  • Flowrate 0. – 150 mᶟ/h
  • Pressure up to 48 bar
  • Dry Substance Content max. 45%

Technical Details

  • Stator with S-cone inlet for optimum filling of the pumping chamber
  • Fully developed, robust universal joint with pre-feeding screw
  • Enlargement possible with add-on funnel
  • Wear-protected, robust universal joint with feeding screw
  • Flexible drive selection
  • Robust bearing pedestal with close-coupled drive and self-centering of the drive
  • Collecting container optionally in three standard sizes (1m³/h – 10m³/h), special sizes on request

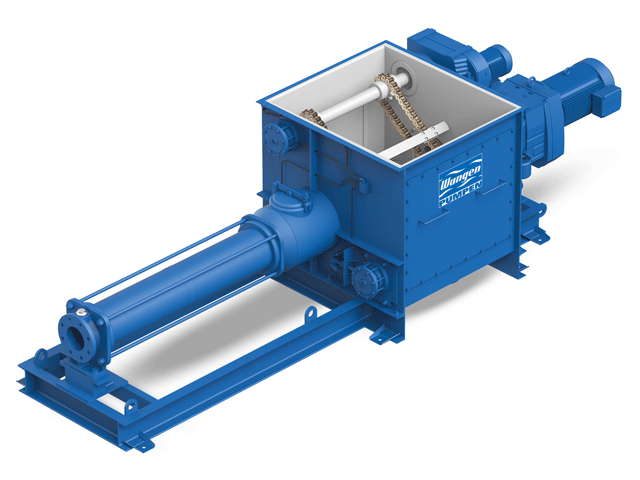

Type KL-RQ

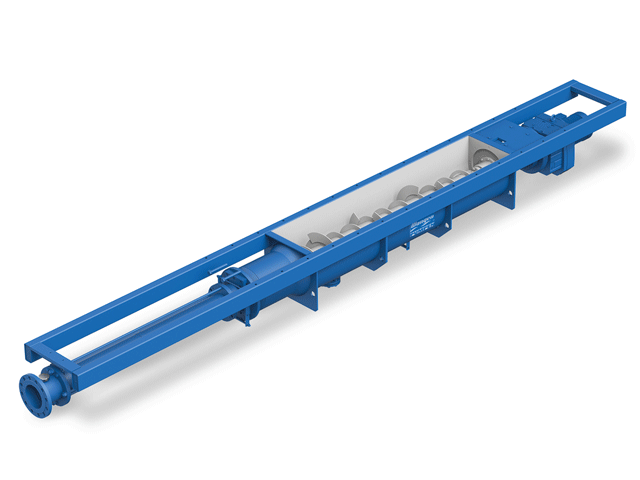

Type KL-RS

Technical Details

  • Driven by helical geared motor
  • Fully developed, robust universal joint with pre-feeding screw
  • Service-proven sealing systems
  • Robust bearing pedestal for high force transduction
  • Stator with S-cone inlet for optimum filling of the pumping chamber
  • Various geometries and pump sizes
  • Fully developed, robust universal joint
  • Flexible drive selection
  • Feeding screw equipped with bridge breaker
  • Available seal types: Stuffing box, mechanical seal, LWD mechanical face seal, lip seals, with and without rinsing or buffer fluid

Performance

  • Flowrate 0. – 150 mᶟ/h
  • Pressure up to 48 bar
  • Dry Substance Content max. 45%

Benefits

  • Low Life Cycle Costs
  • Large viscosity range
  • Good pumping performance even with abrasive and fibrous materials in the media
  • High operational reliability
  • High pressure performance
  • Configuration and length according to the customer’s wishes
  • Modular design for high flexibility and short downtimes for maintenance and repairs
  • Almost pulsation-free conveyance
  • Low servicing costs
  • Various hopper sizes available
  • Robust bearing pedestal w/ close-coupled drive & self-centering of the drive shaft (optional with bare shaft)

Benefits

  • Maintenance-friendly
  • Robust bearing pedestal with close-coupled drive and self-centering of the drive shaft (optional bare shaft)
  • Various hopper sizes available
  • Low-pulsation, continuous conveyance independent of pressure and viscosity
  • Gentle pumping
  • Modular design for high flexibility and short downtimes for maintenance and repairs
  • Rigorous modular principle for high flexibility, low stocking of spare parts, short downtimes for maintenance and repairs
  • Compact construction based on modular principle for high flexibility
  • No tangling of fibers around the joint connections

Performance

  • Flowrate 0. – 150 mᶟ/h
  • Pressure up to 48 bar
  • Dry Substance Content max. 45%

Technical Details

  • Fully developed, robust universal joint with pre-feeding screw
  • Service-proven sealing systems
  • Flexible drive selection
  • Reinforced cardan joint
  • Specially designed joints
  • Stator with S-cone inlet for optimum filling of the pumping chamber
  • Robust bearing pedestal for high force transduction
  • Suction housing with large inspection and cleaning openings
  • Driven by helical geared motor
  • Robust bearing pedestal with close-coupled drive and self-centering of the drive

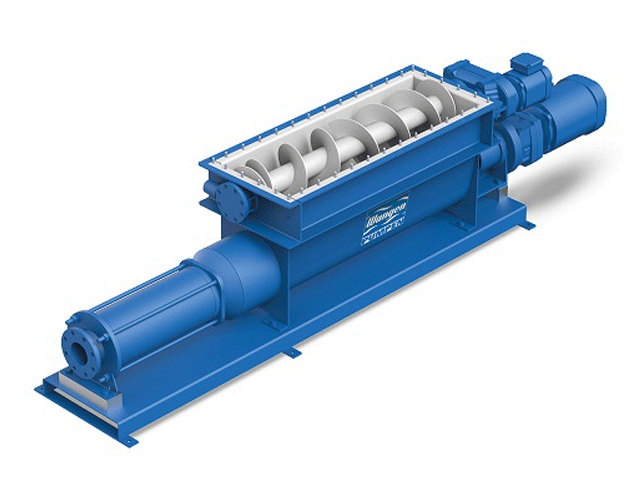

Type KL-RUE
